Used Truck Crane XCMG QY90K Second Hand Truck Mobile Crane

Name: Used Truck Crane XCMG QY90K Second Hand Truck Mobile Crane
Brand: XCMG
Price: 1 USD

Wholesale Used Truck Crane XCMG QY90K Second Hand Truck Mobile Crane from china suppliers

Brand Name : XCMG

Model Number : QY90K

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10PCS/M

Delivery Time : 5-7 Days

Packaging Details : Bulk

Condition : Used

Maximum Lifting Height : 13.8 - 71m

Maximum Lifting Weight : 90ton

Axle Number : 5

Jib : 2 Section

production date : 2014

Contact Now

Used Truck Crane XCMG QY90K Second Hand Truck Mobile Crane

Production Details:

Model No.	QY90K	Boom Type	Telescopic
Max. Rated Lifting Capacity	70000 kg	Max. Lifting Height of Jib	55m
Max Gradeability	45%	Working Diameter	23m
Transport Package	Complies with Min. export packaging requirements	Specification	14700×2800×3900mm
Driving Mileage	600000M	Working hours	6000h
Trademark	XCMG	Place of Origin	China
HS Code		Supply Capacity	10 Units/ Month

XCMG K series 90-ton classic products, six-section elliptical boom, five-axle rough terrain crane chassis, combined counterweight, compact structure and reasonable layout.

The lifting performance and driving performance are comprehensive. "U"-shaped boom, plug-in boom head, extended embedded slider, super lifting capacity. Proprietary single-cylinder bolt telescopic technology, the telescopic system is fully upgraded to improve active safety. The load-sensing system controlled by PLC bus has smooth control performance. Telescopic slow control technology. Adopt digital bus control system, strong anti-interference ability and low failure rate. The main structural parts adopt automatic welding technology, with zero welding defects and high reliability. The on-board fault diagnosis system makes the operation safer and more reliable.

Product Parameters:

Dimensions	Unit	QY90K
Overall length	mm	14700
Overall width	mm	2800
Overall height	mm	3900
Weights
Deadweight in traveling condition	kg	53000
Front axle load (1, 2, 3 axles)	kg	9000/9000/13000
Rear axle load (4, 5 axles)	kg	13000/9000
Dynamic parameters
Engine model		TAD720VE OM457LAIII/9
Engine rated power	kW/(r/min)	174/2300 315/1900
Engine rated torque	N.m/(r/min)	845/1400 2100/1100
Traveling parameters
Top speed	km/h	80
Min. turning diameter	m	23
Min. ground clearance	mm	315
Approach angle	°	20
Departure angle	°	16
Max. gradeability	%	45
Oil consumption per 100 km	L	60
Main performance parameters
Max. rated lifting capacity	t	90
Min. rated amplitude	m	3
Turntable tail turning radius	m	4.51
Max. load moment	kN.m	3234
Basic boom	m	12.3
Longest main boom	m	55
Longest main boom + jib	m	71
Longitudinal distance of outriggers	m	7.5
Outrigger lateral distance	m	7.1
Working speed parameters
Boom luffing time	s	75
Boom full extension time	s	600
Max. rotation speed	r/min	≥2
Max. speed of main hoisting mechanism (single rope) (no load)	m/min	≥120
Max. speed of auxiliary hoisting mechanism (single rope) (no load)	m/min	≥85

Used Truck Crane XCMG QY90K Second Hand Truck Mobile Crane

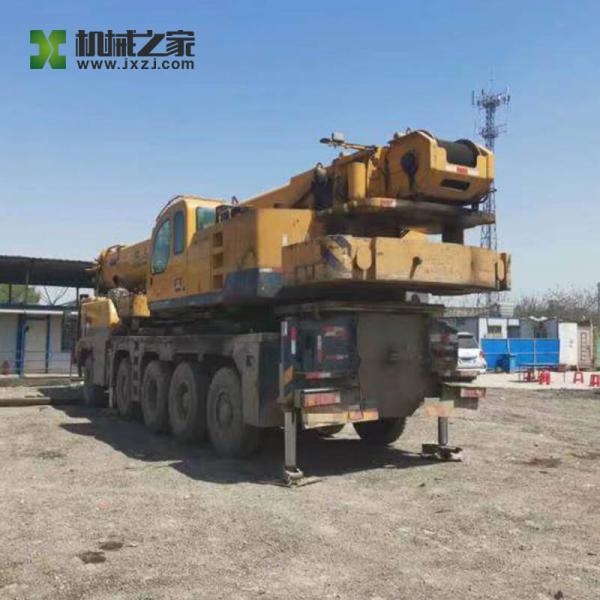

Used Truck Crane XCMG QY90K Second Hand Truck Mobile Crane Images
